711 High-Capacity Mortar Spraying Machine – Large-Scale Wall Plaster & Rendering Sprayer

Factory direct One-year warranty

Product Specs

Output Capacity: 6 m³/h

Motor Power: 7.5 kW

Max Horizontal Conveying: 50 m

AK- 711 High-Capacity Mortar Spraying Machine


for large-scale, continuous application of cement mortar, gypsum, and lime-based renders across interior and exterior wall surfaces. A 7.5 kW motor drives a heavy-duty screw pump to deliver a steady 6 m³/h output, cutting manual plastering time by up to 80% while producing a dense, uniform, bubble-free finish.

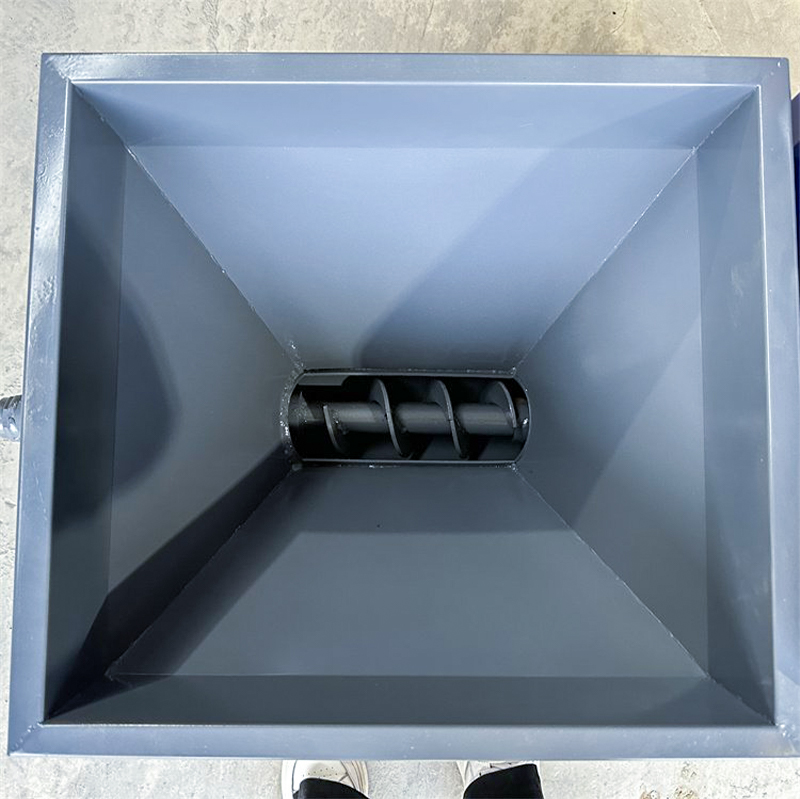

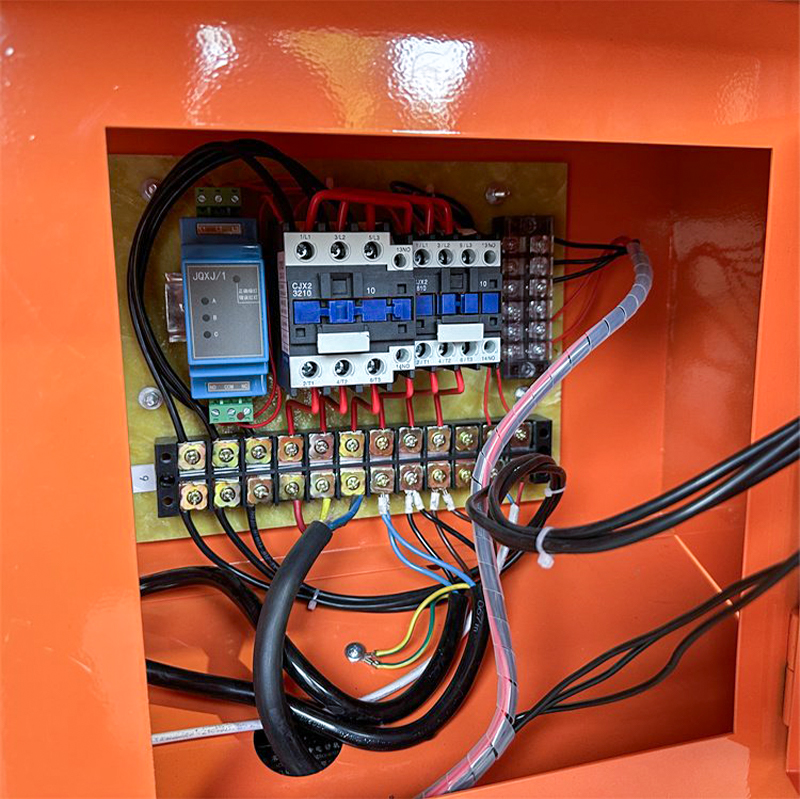

With a 50 m horizontal and 30 m vertical conveying range, an 80 L stainless-steel hopper, and a clear electric control panel, the 711 sustains long production runs with fewer refills and less downtime. It handles aggregates up to 10 mm and is engineered for industrial plants, large commercial sites, and high-rise residential projects. Rugged, dust-controlled, and service-friendly, it lowers labor costs and material waste across demanding jobsites.


Model: AK-711
Output Capacity: 6 m³/h
Motor Power: 7.5 kW
Voltage / Frequency: 380 V / 50 Hz
Max Aggregate Size: 10 mm
Max Horizontal Conveying: 50 m
Max Vertical Conveying: 30 m
Hopper Capacity: 80 L
Hose Inner Diameter: 38 mm
Working Pressure: 4 MPa
Machine Weight: 240 kg
Dimensions (L×W×H): 1500 × 700 × 1200 mm
Applicable Materials: Cement mortar / gypsum / lime-based
Hose Length: 40 m
Crew Requirement: 3–4 persons
Suitable Project Scale: Large / continuous supply
Feeding Height: 900 mm
