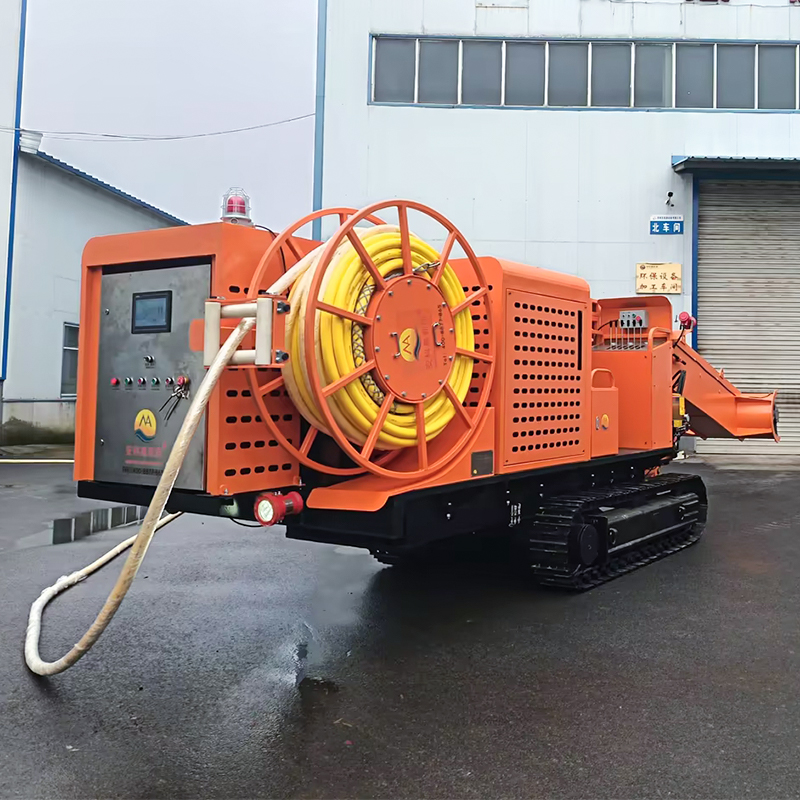

Mining Tunnel Mucking Loader Crawler Grilled Slag Machine
Product Specs
Model:AK-MQCY-60/90YLY
Production Capacity:60m3/h
Electric Motor Power:90kw

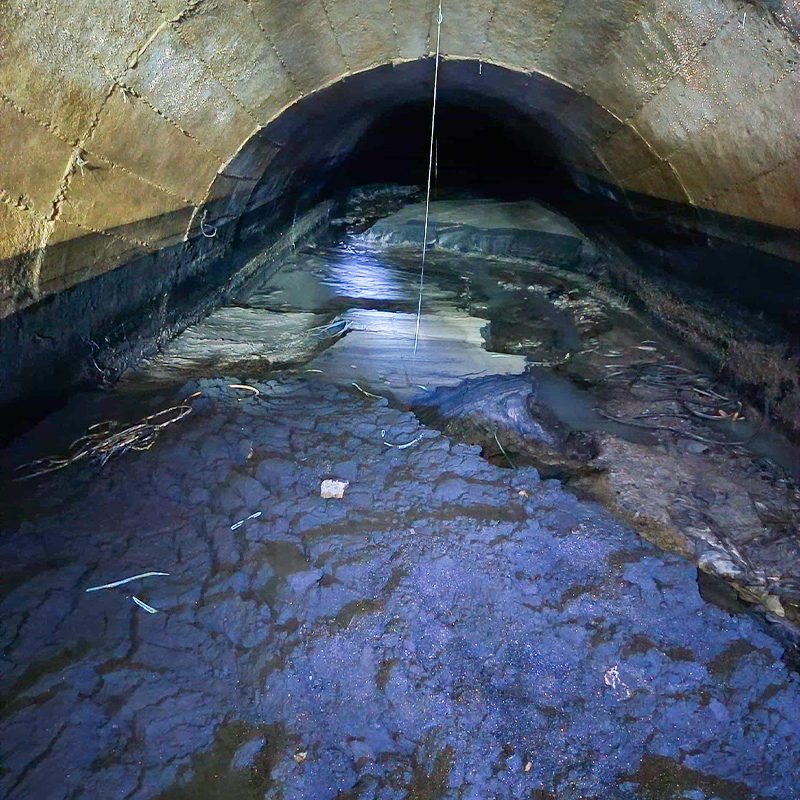

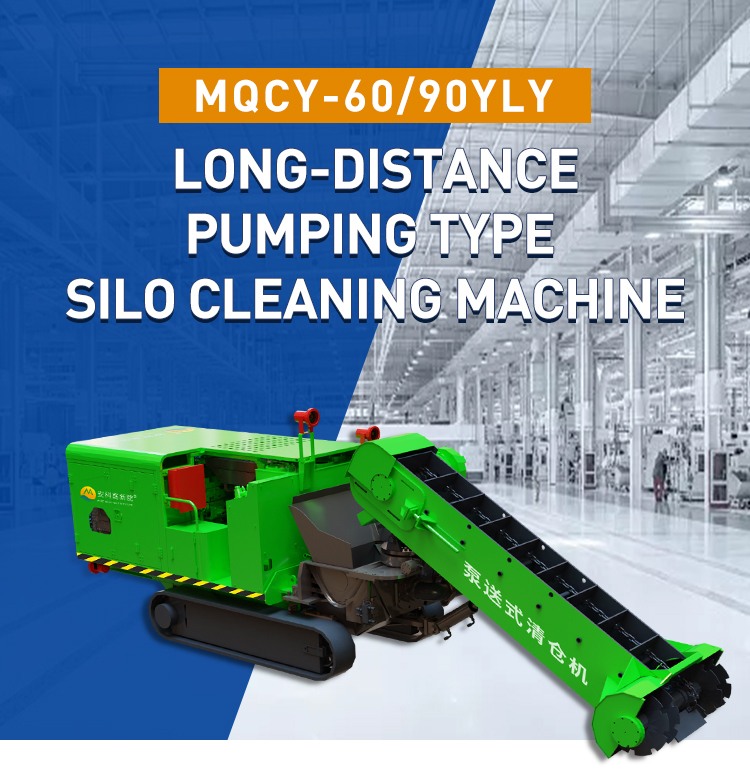

MQCY-60/90YLY Long-Distance Pumping Type Silo Cleaning Machine is mainly used for dredging and conveying operations in sumps
with a length exceeding 300 meters.
It can achieve a maximum horizontal conveying distance of 2000 meters and a maximum vertical conveying height of 200 meters,
and is capable of adapting to the conveyance of sludge (coal slime) with a maximum solid content of 60%.
| Item | Parameter |
| Product | Long Distance Pumping-type Silo Cleaning Machine |
| Production Capacity | 60m³/h |
| Electric Motor Power | 90KW |
| Max Allowable Solid Content | 60% |
| Max Material Retrieval Height | 1500mm |
| Max Material Retrieval Width | 5000mm |
| Max Horizontal Conveying Distance | 2000m |
| Max Vertical Conveying Height | 200m |
| Max Pump Outlet Pressure | 12MPa |
| Climbing Capacity (Hard Ground) | ≤18° |
| Min Ground Clearance | 250mm |
| Traveling Speed | ≤1.2km/h |
| Weight | 6000kg |
| Dimensions | 6300*1500*1800mm |
